Smart Switch System

Modular Smart Switch System

Complete solution for all types of lighting, fans, air conditioners, geysers, and other home appliances. Integrated scheduling, motion sensing, thermostat, parental lock, and usage monitoring for the best home automation experience. Smooth touch points for manual controls locally. Android and iOS Apps for managing the smart switches from your mobile devices. EMTHINGS also works seamlessly through Amazon Alexa and Google Assistant voice commands.

Install it like any conventional modular switch with existing wiring. You can start with one or more modules as per your needs and expand later with Expansion Modules for additional smart switch points. We make it easy to scale growing automation needs without a fuss.

Made in India with indigenous state-of-the-art technology.Every product is backed by 1 year limited warranty.









emthings_info3

Lighting

Module


₹6299 ₹6999

(inclusive of taxes)



2 Dimmable Smart Switches


Voltage: 120V-265V AC, 50Hz


Max Load (Resistive): 1.5A Each


Max Load (Inductive): 1.0A Each


Wi-Fi (2.4Ghz 802.11 b/g/n)


All the Smart Features


Supports up to 2 Add-on Expansion Modules


Compatible with Anchor* ROMA® style Mounting Plates


1 Year Limited Warranty


Standard

Module


₹5849 ₹6499

(inclusive of taxes)



2 Regular Smart Switches


Voltage: 120V-265V AC, 50Hz


Max Load (Resistive): 4.0A Each


MaxLoad (Inductive): 2.5A  Each


Wi-Fi (2.4Ghz 802.11 b/g/n)


All the Smart Features


Supports up to 2 Add-on Expansion Modules


Compatible with Anchor* ROMA® style Mounting Plates


1 Year Limited Warranty

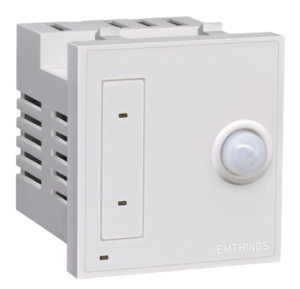

Power

Module


₹4999 ₹5999

(inclusive of taxes)



1 Power Smart Switch


Voltage: 120V-265V AC, 50Hz



Max Load (Resistive): 16.0A


Max Load (Inductive): 11.0A


Wi-Fi (2.4Ghz 802.11 b/g/n)


All the Smart Features


Supports up to 2 Add-on Expansion Modules


Compatible with Anchor* ROMA® style Mounting Plates


1 Year Limited Warranty

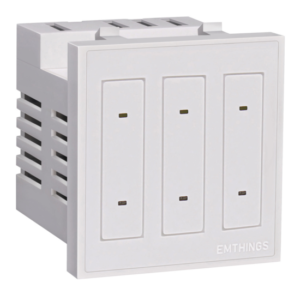

Expansion

Module


₹3999 ₹4499

(inclusive of taxes)



3 Add-on Smart Switches


Voltage: 120V-265V AC, 50Hz


Max Load (Resistive): 4.0A Each


Max Load (Inductive): 2.5A Each


Wi-Fi (2.4Ghz 802.11 b/g/n)


All the Smart Features


Requires Standard, Lighting, or Power Module


Compatible with Anchor* ROMA® style Mounting Plates


1 Year Limited Warranty




Send email to info@emthings.com or call customer support (+91 8788531969 ) for special offers, bulk orders, and partnership opportunities.



Installation and Setup Requirements

  • 2.4 GHz 802.11 b/g/n Wi-Fi network
  • Live and neutral wires for power supply (Max 240 V / 50 Hz)
  • For single pole switches only. Not compatible with 3-way switches
  • Module dimensions: 50mm H x 47mm W x 49mm D
  • Fits into Anchor ® ROMA* or compatible mounting plates
  • Operating conditions 0-50°C and 0-90% relative humidity
  • Indoor usage only
  • Android* 4.4 or higher
  • iOS* 9 or higher
  • Smartphone or tablet wireless connectivity (Wi-Fi/2G/3G/4G)

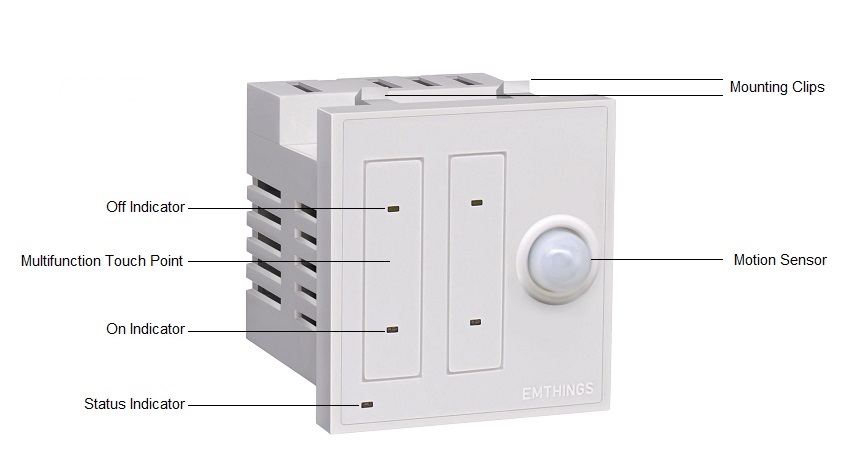

 switch-details

Switch Module Installation

App Setup and Usage



Selection Guide and Examples

Here are some example combinations to help you understand automation for a typical setup. You could use any type of lighting or appliance within the specific current rating of a switch module. You can also use our Selection Tool to estimate smart switches for your home and office.

Typical Non-AC Medium Size Room Automation

1 Lighting Module + 1 Expansion Module

ApplicationSwitch Points
Dimmable Lights and Fans2
Additional Room Lighting or Appliances1
TV1
Medial Player / Home Entertainment1



Typical AC Medium Size Room Automation

1 Lighting Module + 1 Expansion Module + 1 Power Module

ApplicationSwitch Points
Dimmable Lights and Fans2
Additional Room Lighting or Appliances1
TV1
Medial Player / Home Entertainment1
Room AC1



Typical Non-AC Hall Automation

1 Lighting Module + 2 Expansion Module

ApplicationSwitch Points
Dimmable Lights and Fans2
Additional Room Lighting or Appliances3
TV1
Medial Player / Home Entertainment1
Room Cooler1



Typical AC Hall Automation

1 Lighting Module + 2 Expansion Module + 1 Power Module

ApplicationSwitch Points
Dimmable Lights and Fans2
Additional Room Lighting or Appliances3
TV1
Medial Player / Home Entertainment1
Chandelier1
Room AC1



Typical Kitchen Automation

1 Standard Module + 1 Expansion Module

ApplicationSwitch Points
Lights and Fans2
Additional Lights or Kitchen Appliances2
Exhaust Fan1



Typical Bathroom Automation

1 Standard Module

ApplicationSwitch Points
Light                                                          1
Exhaust Fan1



Typical Bathroom with Geyser Automation

1 Power Module + 1 Expansion Module

ApplicationSwitch Points
Lights                                                        2
Exhaust Fan1
Geyser1



Typical Non-AC Office or Shop Automation

1 Lighting Module + 1 Expansion Module

ApplicationSwitch Points
Dimmable Lights and Fans2
Additional Room Lighting or Appliances1
TV1
Room Cooler1



Typical AC Office or Shop Automation

1 Lighting Module + 1 Expansion Module + 1 Power Module

ApplicationSwitch Points
Dimmable Lights and Fans2
Additional Room Lighting or Appliances2
TV1
Room AC1
